DIAMETER SELECTION GUIDE (FOR WYS SERIES) .
| 9,000 BTU Models (except for 22 SEER 115V) |
1/4"-3/8" |
| 12,000-18,000 BTU Models (as well as 9k 22 SEER 115V) |
1/4"-1/2" |
| 24,000 BTU and Above Models |
3/8"-5/8" |
DIAMETER SELECTION GUIDE (FOR DIAMANTE/WYT SERIES).
| 9,000 BTU - 18,000 BTU |
1/4"-3/8" |
| 24,000 BTU |
1/4"-1/2" |
| 36,000 BTU |
1/4"-5/8" |
SUMMARY
- Copper pipes.
- 3 layer insulation.
- Brass flare nuts.
- Includes the following:
- Insulated pre-flared copper refrigerant pipes (length and diameter as chosen).
- 4 lead communication wire between indoor and outdoor unit (same length as chosen).
- 10 ft. condensate drain hose.
- Wall passage sleeve with cap and putty.
- Non-adhesive wrapping tape (2" wide, 50' length).
FEATURE SET
- Highest Quality Full Copper Piping Kit Set.
- Compliance with ASTM-B280 Standard (USA-Canada).
- Dehydrated Soft Drawn Copper Tubes.
- Three Layer Water Proof P.E. Insulation.

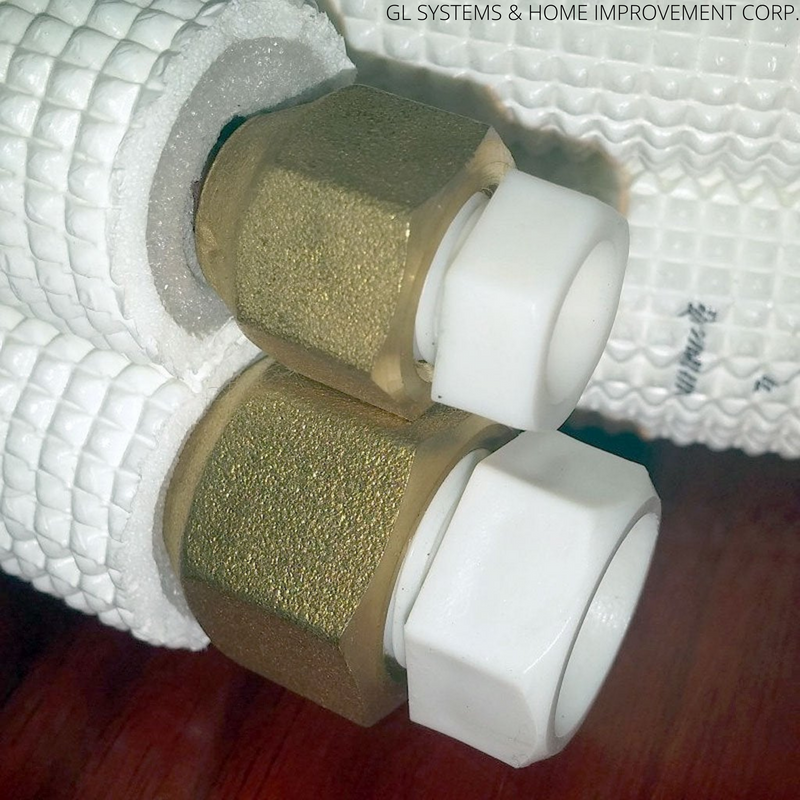

- Brass Flare Nuts, on ready formed flare ends.
- Matching Length 16 Gauge 4 Lead Signal Cable set.
- Plastic dust caps, to keep clean during installation.
- Wall Sleeve/Liner with Cap.
- Wall Filler Putty.
- Non Adhesive Wrapping Tape.
|
